Hummingbird24-1420-BRG-AMP

The Hummingbird24-1420-BRG-AMP provides a 24-channel 2U Form Factor unit targeted to Bridge applications with added support for Kulite’s 5-wire sensors with built-in temperature signals.

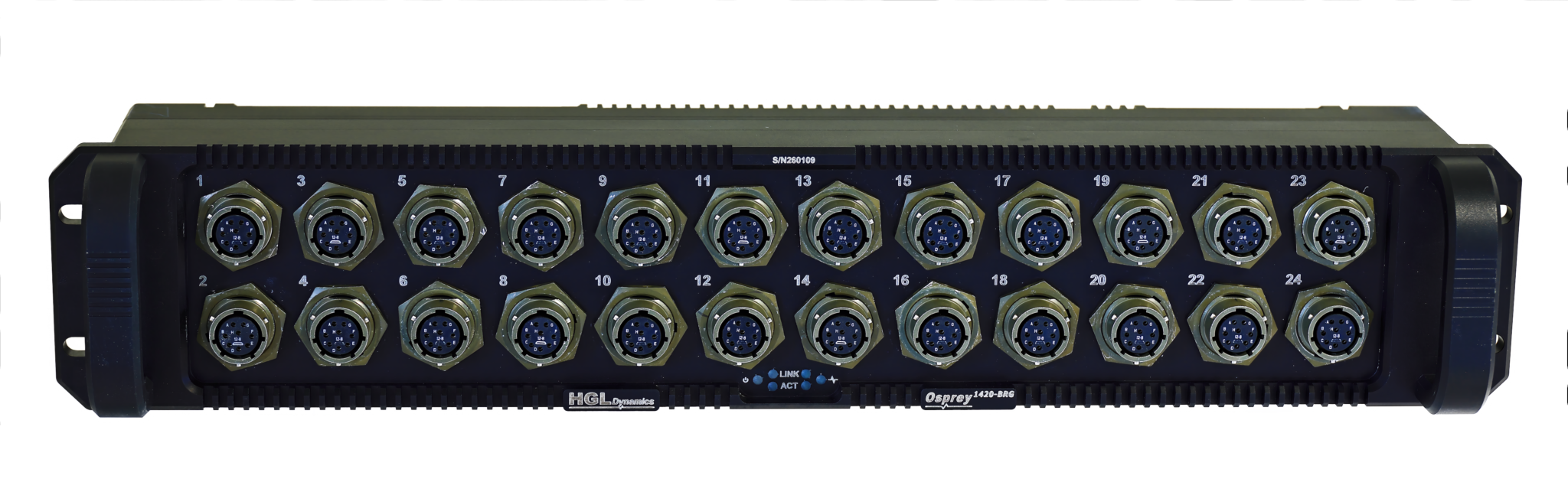

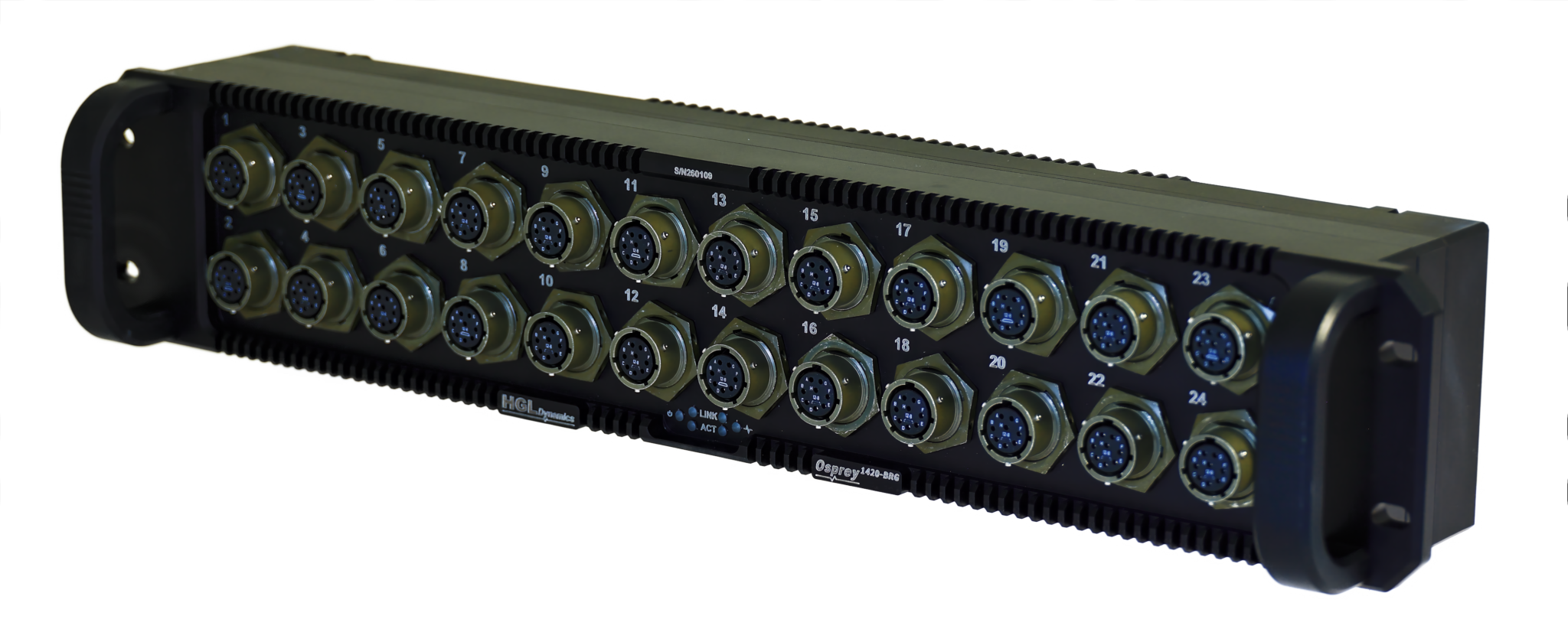

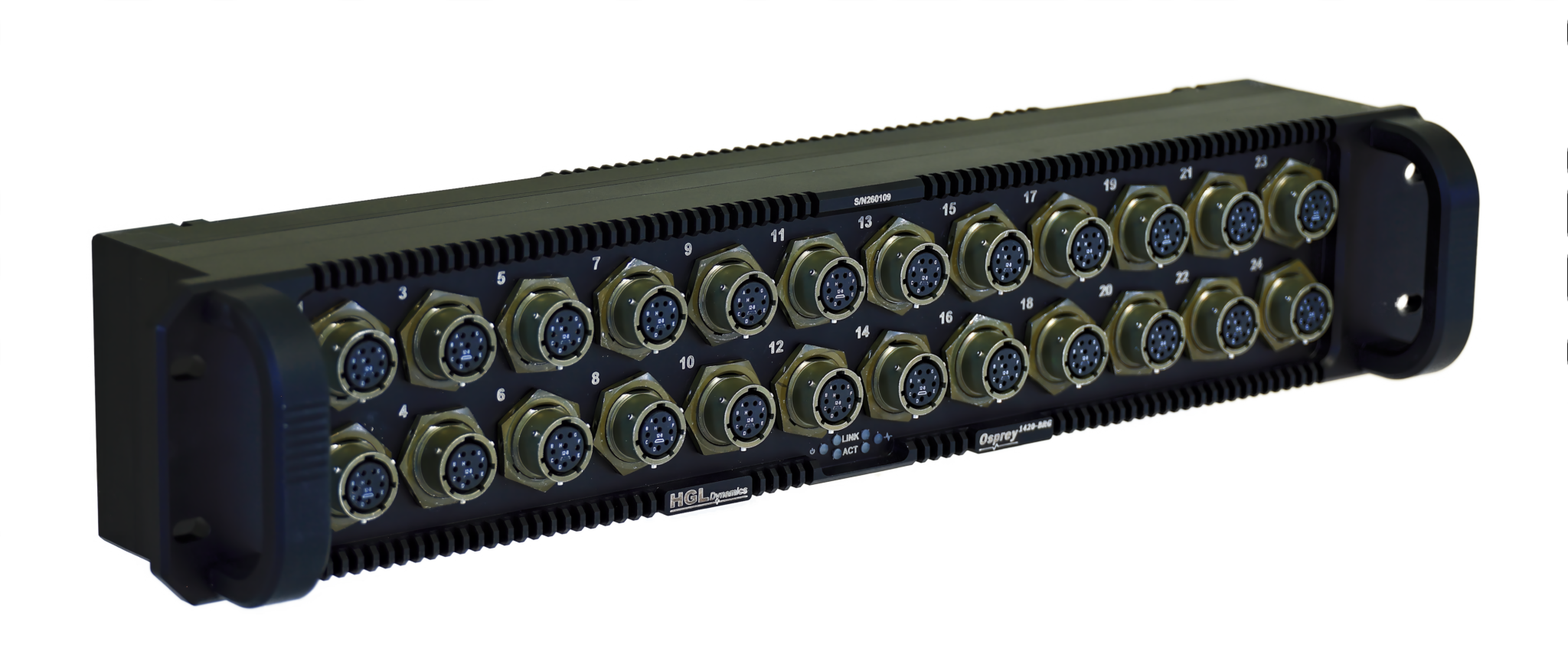

The unit is provided with Amphenol Front Panel connectors providing support for all standard Bridge (and voltage) connections (Shown below)

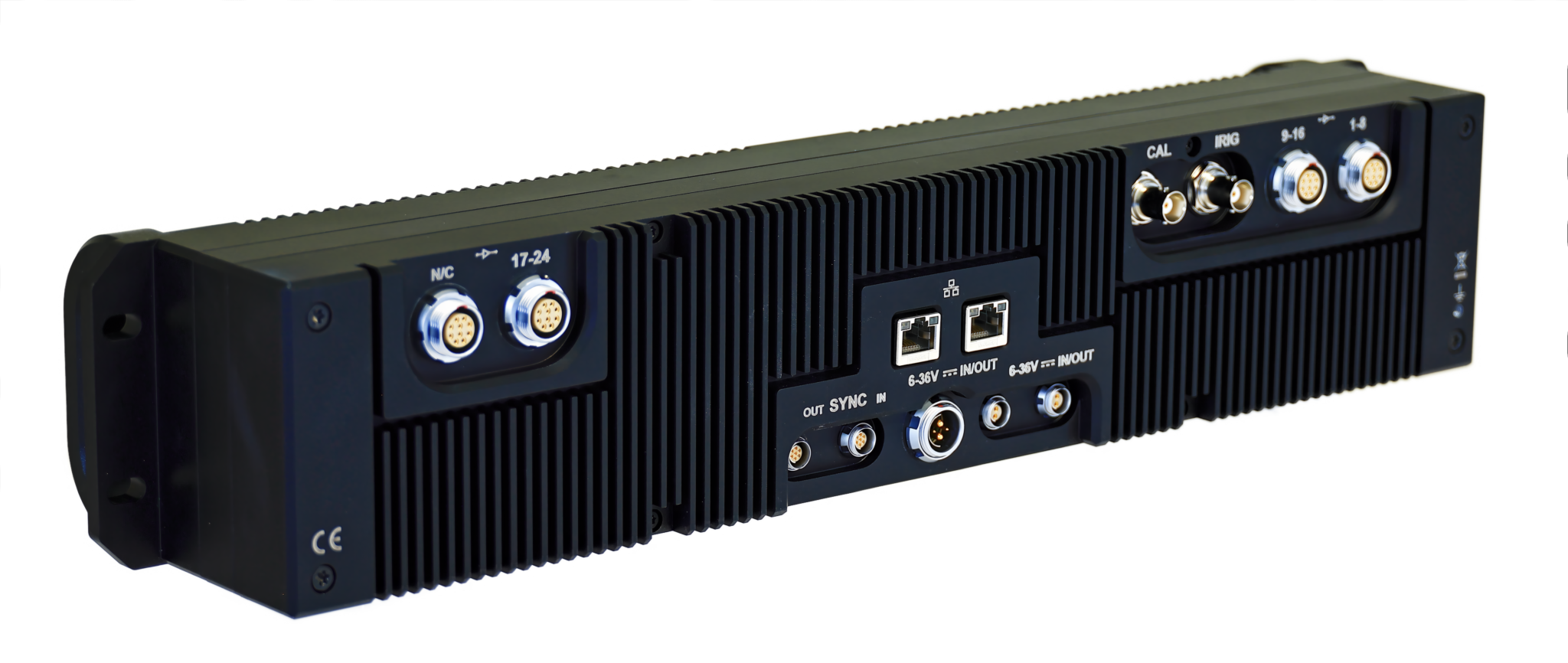

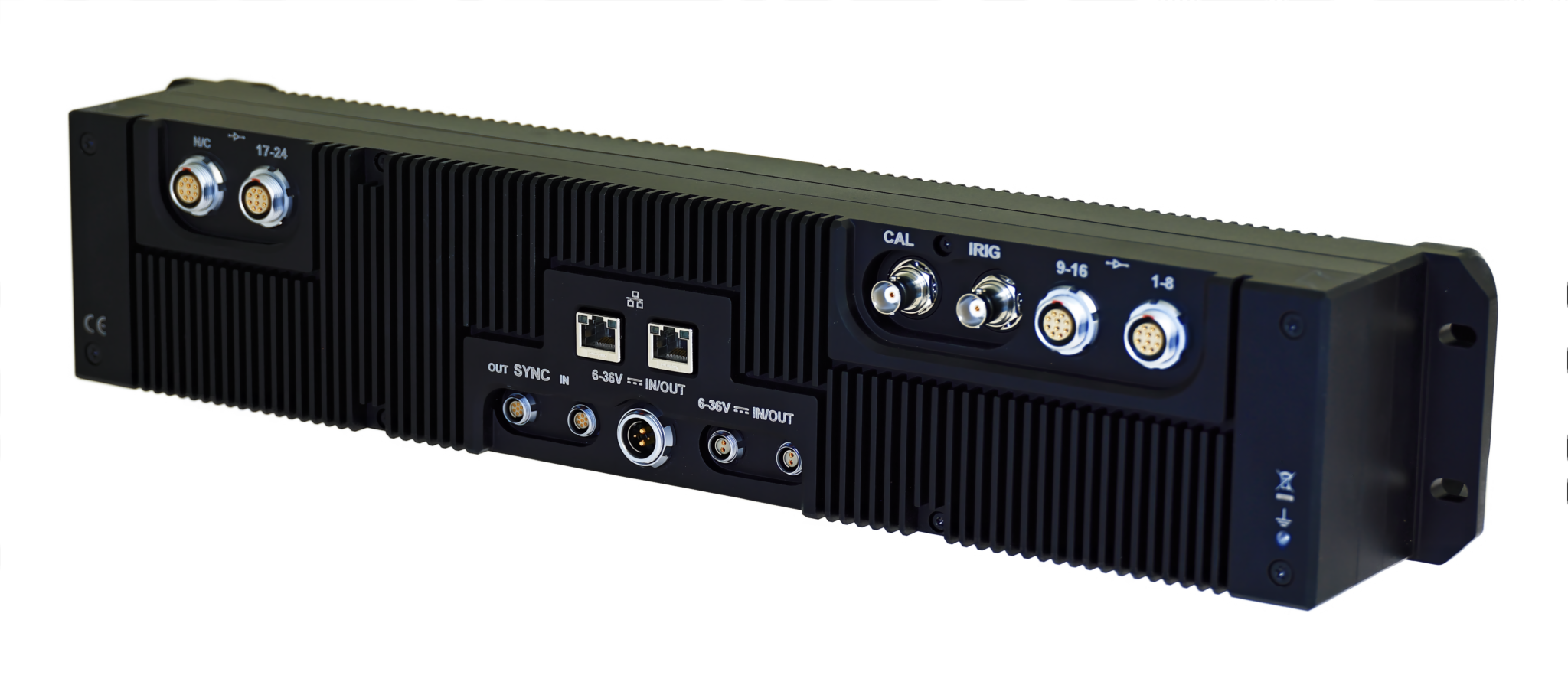

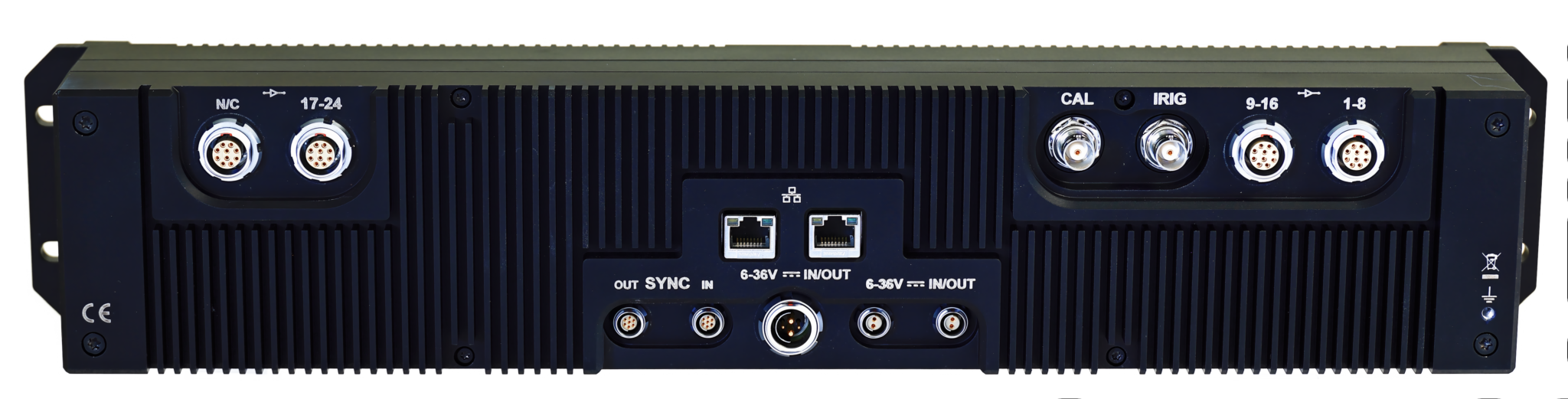

As with all Hummingbird units, it includes HGL’s standard interface connections presented on the Hardware Overview page. This means that all Hummingbirds units can connect with and operate with any other HGL Modular Front-Ends.

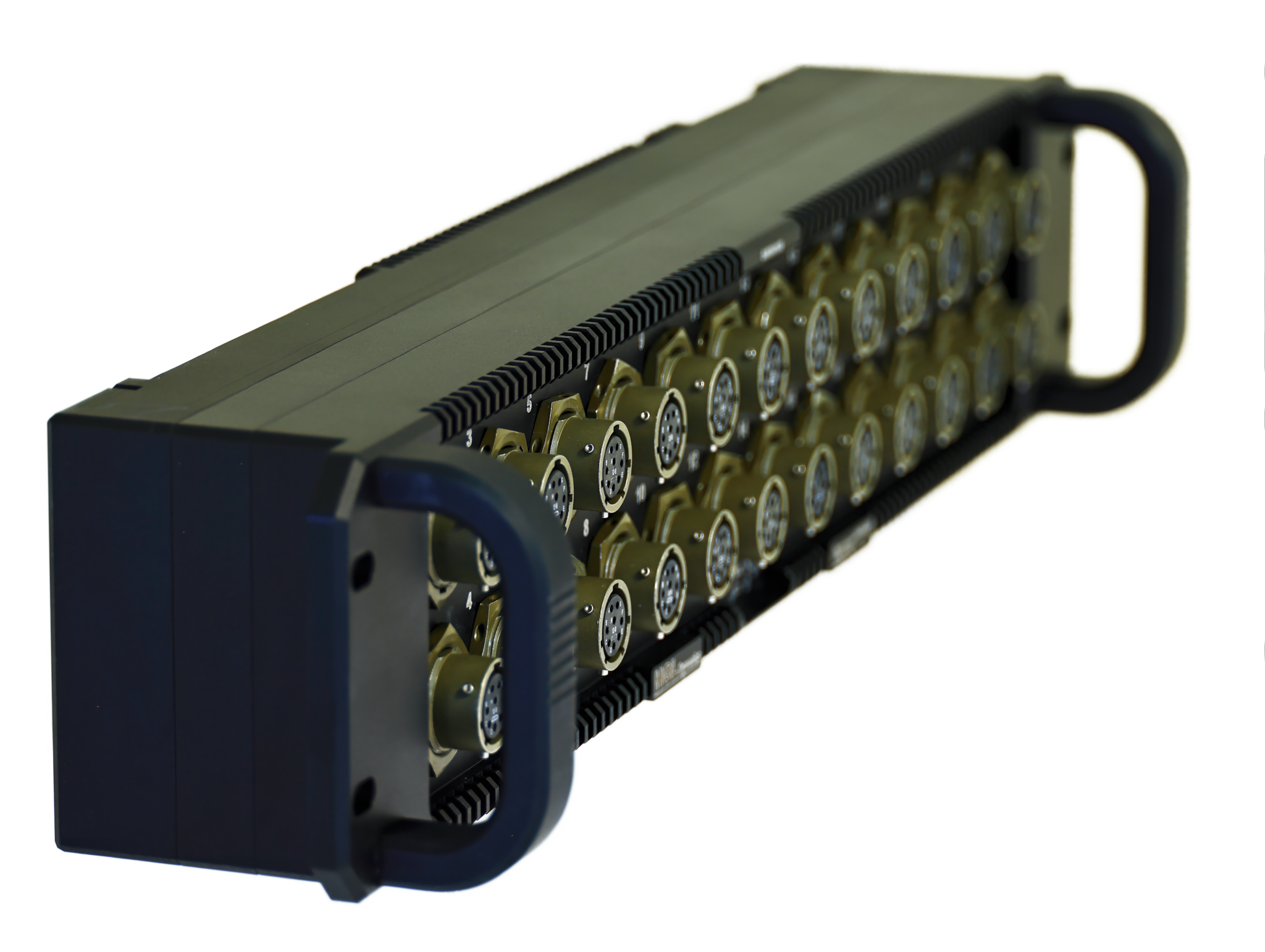

The Hummingbird24-1420-BRG-AMP is presented in a 2U Milled Aluminium Hard Anodised Chassis, ideal for harsh Environmental locations including on Vehicle applications.

The Hummingbird24-1420-BRG-AMP is supported fully by HGL’s Data Acquisition Software as well as our Labview, Windows DLL and Network API models.

Features

24 Channels

24 identical channels

Built-in Conditioning

Voltage
1/4, 1/2 and Full Bridge
Constant Voltage Excitation (0-10V)
120, 350 and 1000Ohm Completion
Two built-in Shunt Resistors (calibration)
Kulite Temperature Signal Support

Multiple Synchronizing Types

Natively supports IRIG A/B, IEEE-1588 (PTPv2) and HGL LVDS for precise synchronisation to < 50nS resolution across entire systems. GPS is optionally available.

Simultaneous Sampling

Supports individual Sigma-Delta ADCs per channel synchronized to better than 10ns across all channels in the unit.

Flexible Sample Rates

Supports sample rates from 1kHz to 256kHz (in 1Hz steps) to be chosen for each block of 8 channels. Due to careful design the majority of these sample rates are precise.

140dB Dynamic Range

Utilises instrumentation grade Sigma-Delta 24-bit ADCs for main input signals (Voltage & BRidge) and 16-bit ADCs for the Kulite Temperature input.

Flexible Power

Supports DC power from 9 to 36V (automotive ranges) and PoE to 802.3bt (100W) standard.
AC power supplies are supported through a range of external adaptors

Environmentally Sealed

Designed to be used in environmentally challenging environments, no exterior openings and are sealed to IP65 (min) standard against fluids including jet fuels, lubricants etc.

Rugged

Intended for use in harsh vibration environments in test cells close to test vehicles and even on test vehicles.

Conduction Cooled

Conduction cooled through innovative internal design and materials.
All models are able to operate accurately from -55 to +80C.

Flexible and Scalable

Fully interoperable with other DAQ modules.
Connection of multiple units is simple and quick and allows complex systems up to and above 1000 channels to be realised easily

Hummingbird Models

Hummingbird is available in a range of models and signal conditioning options. The most popular units provide the same conditioning for all channels, but HGL Dynamics can provide mixed conditioning models on request.

The table below indicates the Signal Conditioning types in the first column and the types of conditioning supported by that type.
