Eagle Family

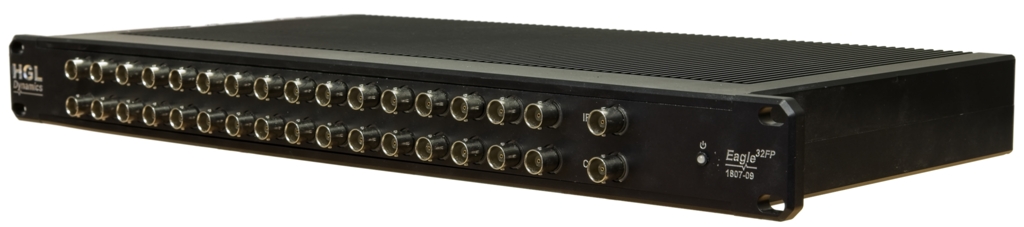

The Eagle provides a family of tough rack mountable Data Acquisition (DAQ) Front-Ends in 16 / 24 / 32 channel versions with built in Signal Conditioning options.

All Eagle units include HGL’s standard interface connections presented on the Hardware Overview page. This means that all Eagle units can connect with and operate with any other HGL Modular Front-Ends.

Eagle is presented in 1U / 2U Milled Aluminium Hard Anodised Chassis and are aimed for benign Environmental locations. All Eagle units are supported fully by HGL’s Data Acquisition Software.

Features

16 / 24 / 32 Channels

Eagle Front Ends are provided with 16 / 24 / 32 channels in the standard 1U / 2U chassis

Multiple Conditioning Types

Depending on Signal Conditioning option(s) chosen, Eagle can support Voltage, IEPE, Bridge (all types), Dynamic Strain, SE & DF Charge (including High Temperature sensors), 4-20mA, RTD (PRT) and TC each channel.

Multiple Synchronizing Types

Eagle natively supports IRIG A/B, IEEE-1588 (PTPv2) and HGL LVDS for precise synchronisation to < 50nS resolution across entire systems. GPS is optinally available.

Simultaneous Sampling

Eagle supports individual Sigma-Delta ADCs per channel synchronized to better than 10ns across individual units.

Flexible Sample Rates

Eagle allows sample rates from 1kHz to 256kHz (in 1Hz steps) to be chosen for each block of 8 channels. Due to careful design the majority of these sample rates are precise.

140dB Dynamic Range

Eagle utilises instrumentation grade Sigma-Delta 24-bit ADCs across the range. These provide up to 140dB Dynamic Range and with oversampling rates to 1024x provide superb anti-alias capabilities.

Flexible Power

All Eagle models support DC power from 9 to 36V (automotive ranges) and PoE to 802.3bt (100W) standard.
AC power supplies are supported through a range of external adaptors

Conduction Cooled

All Eagle models are conduction cooled through innovative internal design and materials.
All models are able to operate accurately from -55 to +80C.

Flexible and Scalable

Every HGL DAQ module in fully interoperable with other DAQ modules and this includes Eagle. Connection of multiple units is simple and quick and allows complex systems up to and above 1000 channels to be realised easily

Eagle Models

Eagle is available in a range of models and signal conditioning options. The most popular units provide the same conditioning for all channels, but HGL Dynamics can provide mixed conditioning models on request.

The table below indicates the Signal Conditioning types in the first column and the types of conditioning supported by that type.
